White 130℃ PP Heat Sinking Thermal Conductive Plastic TCP 100-01PP , 1 W-mK , RoHs and UL 1.55g/cm3, 94V0

  • 1
  • 2
  • 3

Brand Name : Ziitek

Model Number : TCP 100-01PP

Certification : RoHs and UL

Place of Origin : China

MOQ : 100kg

Supply Ability : 1000KG/day

Packaging Details : 25KG/Bag

Color : white

Thermal Conductivity Throngh Plane : 1 W/mK

Heat Deflection Temperature : 130℃

Specific Gravity : 1.55g/cm3

Flame retardancy : 94V0

Contact Now

White 130℃ PP Heat Sinking Thermal Conductive Plastic TCP 100-01PP , 1 W-mK , RoHs and UL 1.55g/cm3, 94V0​

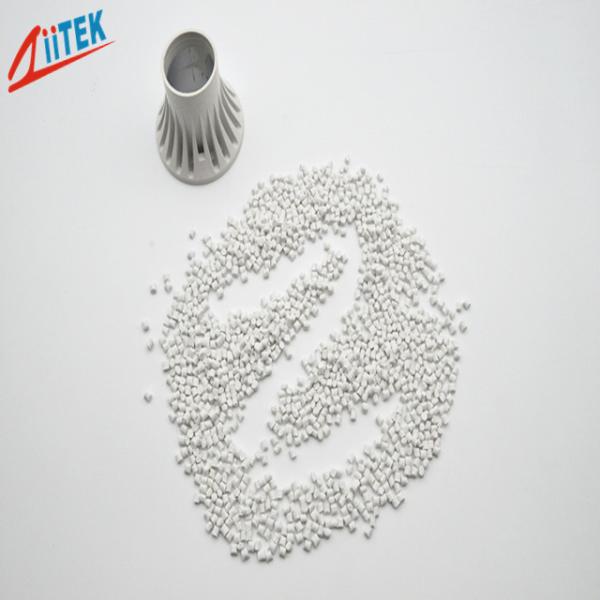

TCP 100-01PP is a Thermally Conductive Engineering Plastic developed for the housing design which requires high thermally conductivity and reduces the weight more than 30% comparing with the same aluminium devices.

Application
To potting LED Lighting heat spreader and power- driver.
Ferrite cements
Relay sealant
Power transformers and coils
tip type LED
PCB and plastics
small electrical devices
IGBTs
Transformer
LED Power Supply
LED Controller
LED Lights
LED Ceilinglamp
Monitoring the Power Box
AD-DC Power Adapters
Rainproof LED Power Supply
Waterproof LED Power Supply
Piranha wroof and common lED module
LED module for Channelletters
SMD LED module
LED Flesible strip, LED bar
LED PanelLight
LED floot light
White 130℃ PP Heat Sinking Thermal Conductive Plastic TCP 100-01PP , 1 W-mK , RoHs and UL 1.55g/cm3, 94V0

Features

> Good thermal conductivity:1 W/mK
> Excellent thermal conductivity compared to normal engineering plastics
> Lighter than normal Aluminum housing 30% in weight
> Excellent mould ability in injection moulding
> Much higher production yield than normal Aluminum Die Casting
> Excellent flexibility in designing final products such as housings.
> UL94 V-0 .
Typical Properties of TCP 100-01PP
Items Test method Unit Typical data
Physical Properties
Color Visual ***** white
Melt index ISO 1133 g/10min 14.73
Specific Gravity ISO 1183 g/cm3 1.55
Shrinkage ISO 294 % 1.3
Mechanical Properties
Tensile Strength ISO 527 MPa 9,92
Flexural Strength ISO 178 MPa 38
Flexural Modulus ISO 178 MPa 3900
Impact Strength, notched ISO 180 kJ/m2 8.9
Electrical Properties
Dielectric Breakdown Voltage ASTM D149 VAC >10000
Dielectric Constant, 1MHz ASTM D150 ***** 4.5
Volume Resistivity ASTM D257 Ohm-meter 7.0 X 109
Thermal Properties
Heat Deflection Temperature ASTM D648 ℃ 130
Thermal Conductivity Throngh Plane ASTM E1461 W/m-K 1
Flame retardancy Min. thick. 1.0mm Class V-0

a. Pre-Drying : 4 hrs. @ 80℃ by Hopper Dryer

b. Recommendable Process Temperature at molding machine
- Nozzie : 280℃
- Front : 270℃
- Middle : 260℃
- Rear : 250℃
c. Cycle time : 30sec
